Senzing Cookbook · Recipe

Healthcare Exclusion Screening

A meal. Map two provider datasets, deploy an AWS pipeline, run Senzing V4 ER and export; serve it in an Entity Browser; then add OIG LEIE exclusions and flag excluded providers. SE/advanced.

AdvancedMealComplianceKitchen: AWSEntity Browser⏱ a few hoursChef: Nigel DeFreitasDraft
Optional — or dive straight into the recipe below.

First time? Do the one-time setup first. Then come back and cook.

Get Started

From the chef — Nigel DeFreitas

N

I built this in a real AWS production kitchen, not a laptop — the goal was an operational compliance system that keeps running, not a one-off demo. A couple of liberties: I borrowed Clair's network-graph idea for the place setting rather than reinvent it, and I limited the OIG load to last names starting "A" to keep the walkthrough snappy (drop that filter to load them all). The payoff was real: the exclusions overlay surfaced actual excluded Las Vegas doctors.

⚠️ Not a quick live demo — real AWS infra, hours of build time, real charges.

What you'll need

Kitchen
AWS (production) — (CDK/RDS/ECS/Glue/Step Functions, IAM via STS, AWS Docs MCP, creds). A substantial build.
Ingredients
NPPES NPI + OpenData.org (Las Vegas), pre-staged in s3://npi-public-data-input-raw/. (Step 3 adds OIG LEIE exclusions.)
The mission
which Las Vegas providers are on the OIG exclusion list?

Cook the dish (map, deploy the pipeline, resolve, export)

Map both sources, deploy the AWS pipeline, run ER, export. The loader must be production-grade. Paste:

Step 1 prompt
Important: Use the Senzing MCP for all Senzing work. Use the AWS Documentation MCP for any AWS CDK questions.

Goal: Map two pre-staged healthcare provider datasets, deploy a fully automated AWS CDK pipeline, run Senzing V4 entity resolution, and export the resolved entity graph.

Hard rules:
- Use the Senzing MCP's mapping_workflow for all field mappings — not training knowledge.
- Use the Senzing MCP's sdk_guide for all SDK calls and loader patterns.
- Check the Senzing MCP anti-patterns docs before implementing the loader. Use a production-grade loader — not a demo or single-threaded process.
- Process redo records so resolution is complete.
- Use CDK for all AWS infrastructure. Prefix every resource with npi-public-data-* and deploy the CDK to AWS region us-east-1. I acknowledge and accept all AWS charges for these actions.
- Deploy using IAM role npi-public-data-deploy via AWS STS. Include a CDK-aware IAM policy template.
- Split large IAM policies by domain so each is under the 6,144 character limit.

Data sources (pre-staged in s3://npi-public-data-input-raw/):
- NPPES NPI: licensed healthcare providers, Las Vegas, NV
- OpenData.org: commercial provider enrichment, Las Vegas, NV

License & Credentials: The Senzing License is attached, and the RDS password is located in the ./Credentials/creds.txt file.

Steps:
1. Inspect both source files and propose field mappings using the Senzing MCP mapping_workflow. Show the mappings for my review before proceeding.
2. Once I approve, synthesize and deploy the CDK stacks (storage, networking, database, ECS, Glue ETL, Step Functions orchestration).
3. Run the Senzing V4 entity resolution pipeline. Print progress every few seconds as records load.
4. When fully loaded, export the resolved entity graph to S3 and print a summary match report.
Expected outcome

it proposes field mappings and pauses for your review — approve to continue. Then CDK stacks deploy, the pipeline loads with progress printed, the graph exports to S3, and a summary report prints. My run: ~223,000 records → ~174,000 entities; 663 cross-source overlaps.

Questions that may come up
  • It stopped after the mappings. By design — review and approve before it builds.
  • Cost / time? Real AWS charges; ~hours end to end.
  • A database-init step appeared. Expected — the pipeline registers data-source IDs / initializes the DB before loading.

Plate & serve (the Entity Browser)

Serve it in the Entity Browser place setting. Paste:

Step 2 prompt
Important: Use the Senzing MCP's reporting_guide for this task.

Goal: Build an Entity Browser web UI that loads the resolved entity export from the previous step and lets users explore the identity graph.

Hard rules:
- Follow the Senzing MCP reporting_guide for all query patterns, graph layouts, and why-match interfaces.

Features:
- Search across resolved entities by name, entity ID, or exclusion status (using the Senzing query interface).
- Show resolved entities with their linked source records, clearly labelled by source (NPPES NPI or OpenData.org).
- Network graph with labels to visualize the identity graph and entity-record relationships.
- "Why match?" with feature scores for any selected entity pair.
Expected outcome

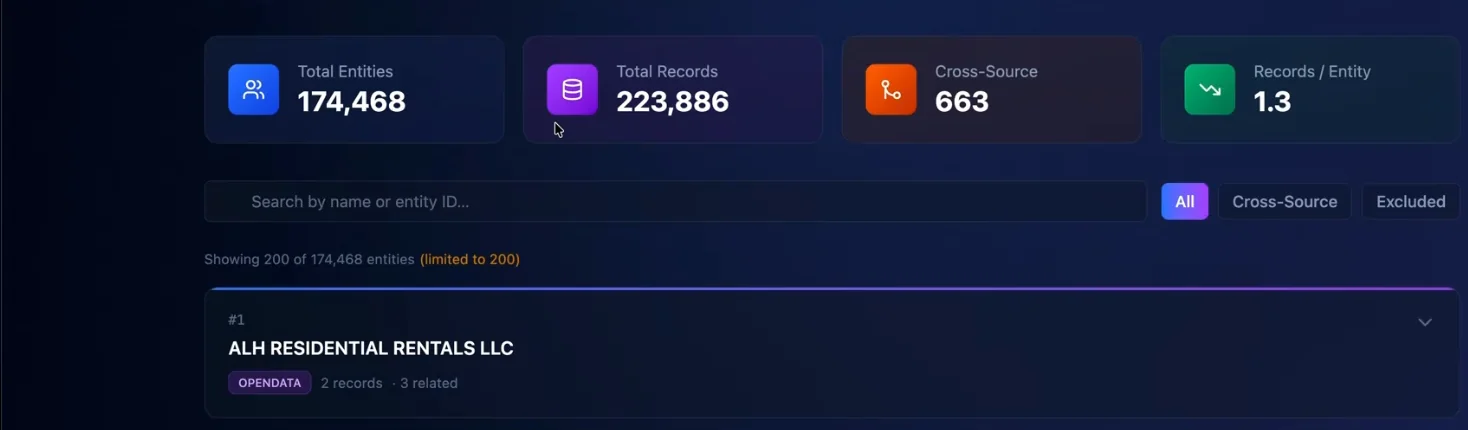

an Entity Browser web UI — search by name / entity ID / exclusion status; entities with source-labeled records; a labeled network graph; "Why match?" with feature scores for a selected pair.

Questions that may come up
  • Where do the query/graph patterns come from? The MCP's reporting_guide — don't hand-roll them.

Add a dish (OIG LEIE exclusions)

Add the exclusions list; it re-resolves against the providers and the browser re-plates. Paste:

Step 3 prompt
Important: Use the Senzing MCP for this task.

Goal: Add OIG LEIE exclusions as a third data source, then flag and visually highlight any resolved entities linked to OIG exclusion records.

Steps:
1. Map and load records whose last name start with the letter A from the OIG LEIE exclusions dataset into the existing identity graph using the same production-grade loader as before (use the Senzing MCP mapping_workflow).
2. Update the Entity Browser to:
   - Show a clear exclusion flag or badge on any entity linked to an OIG exclusion record.
   - Add exclusion status as a filterable field in the search interface.
   - Visually highlight OIG-linked entities in the network graph (e.g., a distinct color or node border).
3. Print updated match statistics: how many resolved entities now have an OIG exclusion link, broken down by individual vs. organization.
Expected outcome

OIG records load and re-resolve against the existing providers, surfacing excluded doctors (the video found Victor C. Sutton and Everton's Place, both tied to real Nevada medical-fraud cases). The Entity Browser re-plates: exclusion badges, an exclusion-status filter, highlighted OIG-linked nodes; updated stats print (individual vs. org).

Questions that may come up
  • Why only last name "A"? The demo limits the OIG load to last-name-A for speed; drop the filter to load all.
  • Did it merge OIG into existing entities? Yes — that's how excluded providers get flagged.

Wrap-up

You built a production healthcare-provider compliance system on AWS — resolved repository, Entity Browser, and an OIG-exclusion overlay that surfaced real excluded providers — in hours, not months. This is a restaurant, not a one-time dinner: it keeps running.
